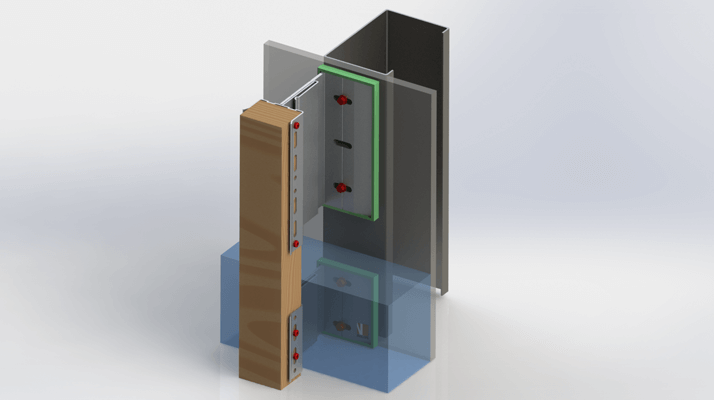

NV6: Nvelope system for holding a timber batten

For use with vertical and horizontal timber rainscreen, concrete weatherboarding, and panels attached to other materials i.e. Copper, Zinc & more!



Applications:
Vertical timber cladding: vertical timber bearers are supported with NVELOPE carriers brackets fixed back to NVELOPE support brackets.
Horizontal timber cladding: vertical timber bearers are supported with NVELOPE carriers fixed back to NVELOPE support brackets, then counter battened.

Material:
Manufactured from extruded aluminium alloys conforming to EN 573-3 (material) and EN 755 production standards.

Approvals:
British Board of Agrément (BBA) – 09/4678

Making things faster onsite:
NVELOPE brackets are adjustable and come with thermal isolators already attached.

Overview

  • NV6 is the NVELOPE system for supporting a timber batten – vertical cladding applications (to support vertical and/or horizontal cladding elements).
  • Timber batten can be used to support timber cladding/weatherboarding and ply (used as a substrate for other materials e.g metal).
  • Concealed fix system, utilising NVELOPE brackets plus NVELOPE carrier.
  • NVELOPE flexible point brackets absorb wind loading and allow for expansion and contraction.
  • NVELOPE fixed point brackets absorb both vertical dead loads.
  • NVELOPE bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, local wind loads.
