NV9: Omega and Zed profiles

Nvelope's simplest subframe system!


  • Omega and Zed profiles are suitable for rainscreens with a shallow cladding zone either 25mm, or 40mm, this simplistic system does not allow for level and adjustment between the substrate and the front of the façade.

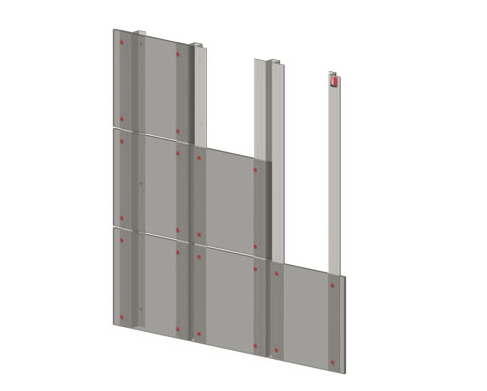

  • The NV9 system is only suitable for face fixed or adhesive secret fix panels. Zed profiles are used at the corner junctions of the façade and Omega profiles are used on panel joints. The profiles are screwed straight back to the substrate using primary fixings.

  • Material: Manufactured from extruded aluminium alloys conforming to EN 573-3 (material) and EN 755 production standards.
